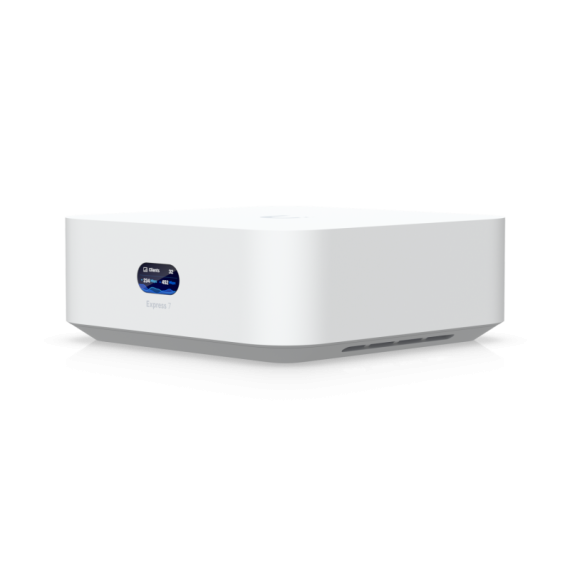

Ubiquiti UniFi Express 7 UX7 Cloud Gateway
UX7
Описание
Ubiquiti UniFi Express 7 UX7 Cloud Gateway
Ubiquiti UniFi Express 7 UX7 — сверхкомпактный Cloud Gateway с интегрированным WiFi 7 для современных сетей малого и среднего масштаба. Устройство объединяет функции маршрутизатора, системы безопасности, управления UniFi Network и беспроводной точки доступа в одном корпусе, а также поддерживает WAN 10 GbE и LAN 2.5 GbE.
Модель подходит для офисов, бутиков, небольших гостиниц, учебных помещений, квартир, домов и удалённых объектов, где важно быстро развернуть управляемую сеть без отдельного стойкового оборудования. UX7 может обслуживать 30+ устройств UniFi и 300+ одновременных пользователей, а встроенный WiFi 7 помогает получить высокую пропускную способность и современный беспроводной стандарт в компактном форм-факторе.
Для покупателей в Узбекистане UX7 интересен как практичное решение для современной инфраструктуры: есть IDS/IPS throughput 2.3 Gbps, Stateful Firewall, VPN и SD-WAN, встроенный RADIUS Server, поддержка 6 GHz, компактный настольный формат и централизованное управление через UniFi Network.
Технические характеристики
| Модель | UX7 |
|---|---|
| Коммерческое название | UniFi Express 7 |
| Тип устройства | Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7 |
| Размеры | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
| Форм-фактор | Compact desktop |
| UniFi Application Suite | Network |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| Порт 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| Порт 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Coverage Area | 160 m² (1,750 ft²) |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic, IPsec, OpenVPN |
| VPN Server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
| VPN Client | OpenVPN, WireGuard |
| Dynamic Routing | OSPF |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| Policy-based WAN and VPN Routing | ✓ |
| Customizable DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| Virtual Network Override | ✓ |
| Интегрированный WiFi | Да |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput 6 GHz | 5.7 Gbps |
| Throughput 5 GHz | 4.3 Gbps |
| Throughput 2.4 GHz | 688 Mbps |
| MIMO 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain 6 GHz | 6 dBi |
| Antenna Gain 5 GHz | 7 dBi |
| Antenna Gain 2.4 GHz | 4 dBi |
| Max. TX Power 6 GHz | 24 dBm |
| Max. TX Power 5 GHz | 26 dBm |
| Max. TX Power 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode), 4 per Radio (AP Mode) |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320); 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160); 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160); 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40); 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 75 BTU/hr |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 06656-25-08356 |
| VLAN | 802.1Q |
| Guest Traffic Isolation | ✓ |
| Application Requirements | UniFi Network Version 9.0.108 and later |
UX7 — компактный Cloud Gateway с WiFi 7 для объектов, где важны 10GbE WAN, 2.5GbE LAN, встроенная безопасность, VPN, современный беспроводной стандарт и централизованное управление в экосистеме UniFi.
